Simple Feed Pellet Production Line 2000kg/h

$0.00 USD

Sale Sold out

简易饲料颗粒生产线

适用于小型农场的低投资饲料颗粒生产线。包括制粒机、混合机和螺旋输送机，产能从500公斤/小时到2000公斤/小时。

产能：0.5-2吨/小时，适用于小型农场饲料颗粒

投资额：5,000美元至15,000美元

饲料类型：家禽、牛、猪、羊、兔

安装：1-3天即可轻松完成安装

总功率：21-44千瓦，具体取决于容量

工作间面积：20-80平方米

联系我们

西迪奥机械

饲料厂视频

观看我们饲料厂的运作过程。真实的工厂画面展示了从原材料到成品颗粒的完整生产流程。

西迪奥机械

小型饲料厂的类型

根据饲料种类，小型饲料厂可分为小型家禽饲料厂、小型牛饲料厂、小型羊饲料厂、小型猪饲料厂等。

小型家禽饲料厂

主要用于加工各种鸡饲料、火鸡饲料、鸭饲料、鹅饲料、鹌鹑饲料和鸟类饲料。粒径一般为1-6毫米。

小型牛饲料厂

主要用于加工草料颗粒、玉米饲料颗粒、青贮饲料颗粒、发酵饲料颗粒等。颗粒尺寸为4-8毫米。常用原料包括苜蓿、干草、秸秆、甘蔗渣等。

小型猪饲料厂

This pig feed mill solution is mainly used to process pig feeds at different growth stages, and the feed size is mainly 2-6mm. Can be configured with puffing raw material process.

Small Goat Feed Mill

This small capacity feed processing plant solution can be used to process various types of sheep and goat pellet feeds such as fresh grass pellets, timothy pellets, hay pellets, alfalfa pellets, etc.

Small Scale Fish Feed Plant

This small feed mill is mainly used to process fish pellet feed, shrimp pellet feed and crab pellet feed, and the feed size is mainly 1-6mm.

Small Horse Feed Mill

This small scale feed milling plant is mainly used to process alfalfa pellets, rice bran pellets, timothy hay pellets, beet pulp pellets, forage pellets, fibre pellets for horse and pony.

Customize My Small Feed Mill →

SIDIO MACHINERY

Small Scale Feed Mill Process Flow

The following shows the process flow of a standard small feed line. Here you will learn how a feed mill completes the process from raw materials to feed pellets.

Low Investment

Minimum budget, only 3 core devices, suitable for small farms to start with.

Easy to Operate

No complicated control cabinet, simple to operate and maintain, one worker can run the whole line.

Small Footprint

Only needs 20-80 square meters workshop space, can be placed in barn or garage.

Quick Installation

All devices are pre-assembled, just connect the screws and power, ready to run in 1 day.

SIDIO MACHINERY

Features And Benefits Of Small Scale Feed Mill

Small feed mill plants have the characteristics of low investment, appropriate production, easy operation and flexible formula. Our small scale feed mill design is very flexible, and we can add silo systems, raw material cleaning sections, batching sections, oil and fat adding sections, etc. according to customer needs.

Wide Raw Material Adaptability

Can process crushed corn, soybean meal, straw powder, grass powder and other common farm raw materials.

Various Feed Pellet Sizes

Change ring die aperture to produce 2-8mm pellets for chickens, ducks, pigs, cattle, sheep and rabbits.

Low Operating Cost

Small total power, low electricity consumption, stainless steel mixer is easy to clean and maintain.

Ready To Run After Delivery

Machinery is pre-assembled in factory, just connect screws and power line, no complicated installation needed.

SIDIO MACHINERY

Different Small Feed Plant Design

For small scale feed mill, there are many different designs. Each customer has different needs. What we can do is customize design based on your special requirements and budget. Here are 3 popular designs for your reference.

Full Automatic Design

Full automatic production line with automatic packaging, suitable for commercial feed production.

Semi-automatic Design

Simplified design, includes crushing - mixing - granulation - cooling - screening. Low investment.

Simple Design

Small farm feed mill solution, very low investment, basic sections included.

Customize My Feed Mill Plan →

SIDIO MACHINERY

Small Feed Mill Equipment List

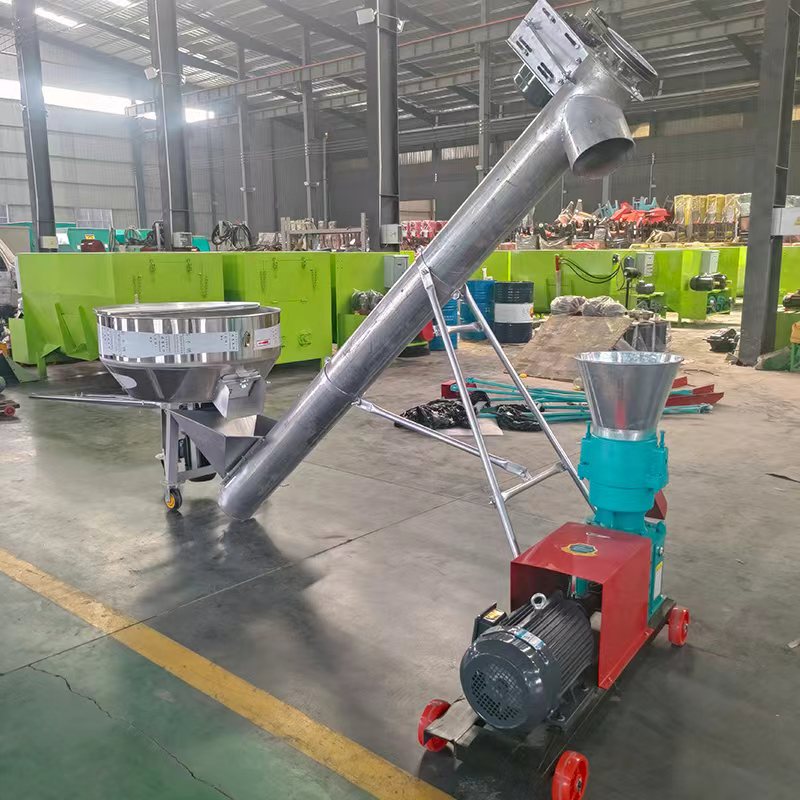

The simple feed pellet line consists of 3 core pieces of equipment: stainless steel mixer, screw conveyor and feed pellet mill, easy to operate and low investment.

Stainless Steel Mixer

Stainless steel pan mixer, evenly mixes raw materials and additives, clean and easy to maintain.

Screw Conveyor

Closed screw conveyor, automatically transports mixed materials from mixer to pellet mill, no dust leakage.

Feed Pellet Mill

Core equipment of the line, presses mixed powder into uniform, durable animal feed pellets.

SIDIO MACHINERY

Three Capacity Options for Simple Feed Line

Simple line with stainless steel mixer, lowest investment, perfect for new starters and small farms.

ENTRY LEVEL

500 KG/H

For backyard small farms

Core Configuration:

✓ 200kg Stainless Steel Pan Mixer (3kW)
✓ 165 Screw Conveyor (3kW)
✓ 9KL-260 Pellet Mill (15kW)

Total Power: ~21kW

Feed Mill Equipment Configuration

Different process designs must correspond to different equipment configurations. Here we list the common equipment configurations of small feed mills.

Configuration Item	500kg/h	1000kg/h	2000kg/h
Pellet Mill Model	9KL-260	9KL-300	9KL-400
Pellet Mill Power	15kW	22kW	37kW
Stainless Steel Mixer	200kg	200kg	300kg
Mixer Power	3kW	3kW	4kW
Screw Conveyor	165 Type	165 Type	219 Type
Conveyor Power	3kW	3kW	3kW
Total Power	21kW	28kW	44kW

SIDIO MACHINERY

Frequently Asked Questions

What is the capacity range of small scale feed mill plant?

Our small scale feed mill plants range from 500kg/h to 5t/h, suitable for small farms, medium-sized feed workshops and small feed factories. The exact capacity depends on your raw material type, pellet size and final product requirements.

How long does it take to install and commission a feed mill plant?

For a 1-2t/h small feed mill, installation usually takes 7-15 days. Our engineer will provide on-site guidance and training for your workers. Larger plants may require 20-30 days.

What raw materials can be processed in the feed mill?

Common raw materials include corn, soybean meal, wheat bran, grass, straw, alfalfa, rice husk, and various grain by-products. The crusher and grinder can handle both granular and fibrous materials.

Can I customize the feed mill design based on my workshop size?

Yes, we provide fully customized design. We will consider your workshop dimensions, budget, target feed type, and automation level to design the most suitable layout for you.

What is the power requirement for a 1t/h feed mill?

A typical 1t/h small feed mill uses around 25-35KW total power, including crusher, mixer, pellet mill, cooler, conveyor and control system. The exact power depends on your equipment configuration.

Do you provide after-sales support and spare parts?

是的，我们提供12个月的保修期、终身技术支持以及充足的备件供应。我们还提供操作培训和远程故障排除指导。

该工厂可以同时生产颗粒饲料和粉状饲料吗？

是的。我们的标准饲料厂可以生产颗粒饲料和粉状饲料。您可以根据市场需求切换生产模式。

小型饲料厂的交货时间是多久？

标准小型饲料厂设备通常在收到定金后15-30天内交付。定制设计可能需要30-45天，具体取决于要求。

这家饲料厂可以生产哪些规格的饲料颗粒？

我们的饲料厂通过更换模具，可以生产2.5毫米至8毫米的颗粒饲料。家禽饲料常用颗粒大小为2-4毫米；牛羊饲料推荐颗粒大小为4-8毫米；鱼虾饲料通常为1-3毫米。

安装饲料磨粉机需要专门的车间吗？

对于简易设计，您只需要一块约30-50平方米的平坦地面。对于半自动和全自动设计，我们将根据您可用的空间提供车间布局图。

平模制粒机和环模制粒机有什么区别？

我们的小型饲料厂采用平模制粒机，这种制粒机更适合小规模生产，操作维护更简便，投资成本也更低。环模制粒机则更适合大规模工业生产线。

你们能提供海外安装指导吗？

是的，我们可以派遣工程师前往贵国提供安装指导和工人培训。费用取决于目的地国家和项目规模。我们也提供远程视频指导。

饲料厂的最小订购量是多少？

我们支持单机购买以及整条生产线。您可以先从制粒机入手，之后根据需求逐步添加其他设备。

建立一家小型饲料厂需要多少投资？

简易的农场饲料加工厂起价约为 8,000 美元。半自动生产线造价约为 20,000 至 35,000 美元。全自动商业化工厂的造价则根据产能和配置的不同，从 40,000 美元到 80,000 美元不等。

你们接受哪些付款方式？

我们接受电汇（30%定金，70%发货前付清）、即期信用证以及阿里巴巴贸易保障订单。价格包含设备、标准配件和出口包装。

免费咨询

立即获取您的专属饲料厂解决方案！

请告诉我们您的需求，我们的工程师将在 24 小时内为您提供详细的设计方案、设备清单和报价。

根据您的需求提供免费定制设计
详细设备清单及报价
专业现场安装指导
12 个月保修 + 终身技术支持

索取免费报价

选择容量0.5-1吨/小时1-2吨/小时2-3吨/小时3-5吨/小时高于 5 吨/小时

全球值得信赖的饲料厂解决方案供应商！
