Semi-Automatic Feed Pellet Production Line 3000kg/h

$0.00 USD

Sale Sold out

半自动饲料颗粒生产线

适用于中小农场的中等投资饲料生产线。包括锤式粉碎机、搅拌机、输送机和制粒机，产能从1吨/小时到3吨/小时。

产能：1-3吨/小时（适用于商业饲料颗粒）

投资额：15,000 美元至 40,000 美元

饲料类型：家禽、牛、猪、羊、鱼、兔

安装：3-7天现场指导

总功率：37-80千瓦，具体取决于容量

车间面积：50-150平方米

联系我们

西迪奥机械

饲料厂视频

观看我们饲料厂的运作过程。真实的工厂画面展示了从原材料到成品颗粒的完整生产流程。

西迪奥机械

小型饲料厂的类型

根据饲料种类，小型饲料厂可分为小型家禽饲料厂、小型牛饲料厂、小型羊饲料厂、小型猪饲料厂等。

小型家禽饲料厂

主要用于加工各种鸡饲料、火鸡饲料、鸭饲料、鹅饲料、鹌鹑饲料和鸟类饲料。粒径一般为1-6毫米。

小型牛饲料厂

主要用于加工草料颗粒、玉米饲料颗粒、青贮饲料颗粒、发酵饲料颗粒等。颗粒尺寸为4-8毫米。常用原料包括苜蓿、干草、秸秆、甘蔗渣等。

小型猪饲料厂

This pig feed mill solution is mainly used to process pig feeds at different growth stages, and the feed size is mainly 2-6mm. Can be configured with puffing raw material process.

Small Goat Feed Mill

This small capacity feed processing plant solution can be used to process various types of sheep and goat pellet feeds such as fresh grass pellets, timothy pellets, hay pellets, alfalfa pellets, etc.

Small Scale Fish Feed Plant

This small feed mill is mainly used to process fish pellet feed, shrimp pellet feed and crab pellet feed, and the feed size is mainly 1-6mm.

Small Horse Feed Mill

This small scale feed milling plant is mainly used to process alfalfa pellets, rice bran pellets, timothy hay pellets, beet pulp pellets, forage pellets, fibre pellets for horse and pony.

Customize My Small Feed Mill →

SIDIO MACHINERY

Small Scale Feed Mill Process Flow

The following shows the process flow of a standard small feed line. Here you will learn how a feed mill completes the process from raw materials to feed pellets.

Higher Automation

Equipped with grinder, no need to buy pre-crushed powder, can process raw corn directly.

Stable Output

From 1T/h to 3T/h, suitable for medium-sized farms and small feed shops.

Less Labor

Screw conveyor automatically transports materials, only 1-2 workers needed.

Flexible Expansion

Can add cooler, screener, packer later when business grows, no need to replace main machines.

SIDIO MACHINERY

Features And Benefits Of Small Scale Feed Mill

Small feed mill plants have the characteristics of low investment, appropriate production, easy operation and flexible formula. Our small scale feed mill design is very flexible, and we can add silo systems, raw material cleaning sections, batching sections, oil and fat adding sections, etc. according to customer needs.

Raw Material Grinding Included

Comes with hammer mill, can crush whole corn and grains directly, no need to buy pre-ground powder.

Stable 1-3T/h Output

From 1000kg/h to 3000kg/h, suitable for family farms, small feed processing shops and cooperative farms.

Lower Labor Cost

Screw conveyor automatically transports materials, only 1-2 workers needed to run the whole production line.

Future Expansion Supported

Can add cooling, screening and packaging equipment later when business grows, main machines don't need to be replaced.

SIDIO MACHINERY

Different Small Feed Plant Design

For small scale feed mill, there are many different designs. Each customer has different needs. What we can do is customize design based on your special requirements and budget. Here are 3 popular designs for your reference.

Full Automatic Design

Full automatic production line with automatic packaging, suitable for commercial feed production.

Semi-automatic Design

Simplified design, includes crushing - mixing - granulation - cooling - screening. Low investment.

Simple Design

Small farm feed mill solution, very low investment, basic sections included.

Customize My Feed Mill Plan →

SIDIO MACHINERY

Small Feed Mill Equipment List

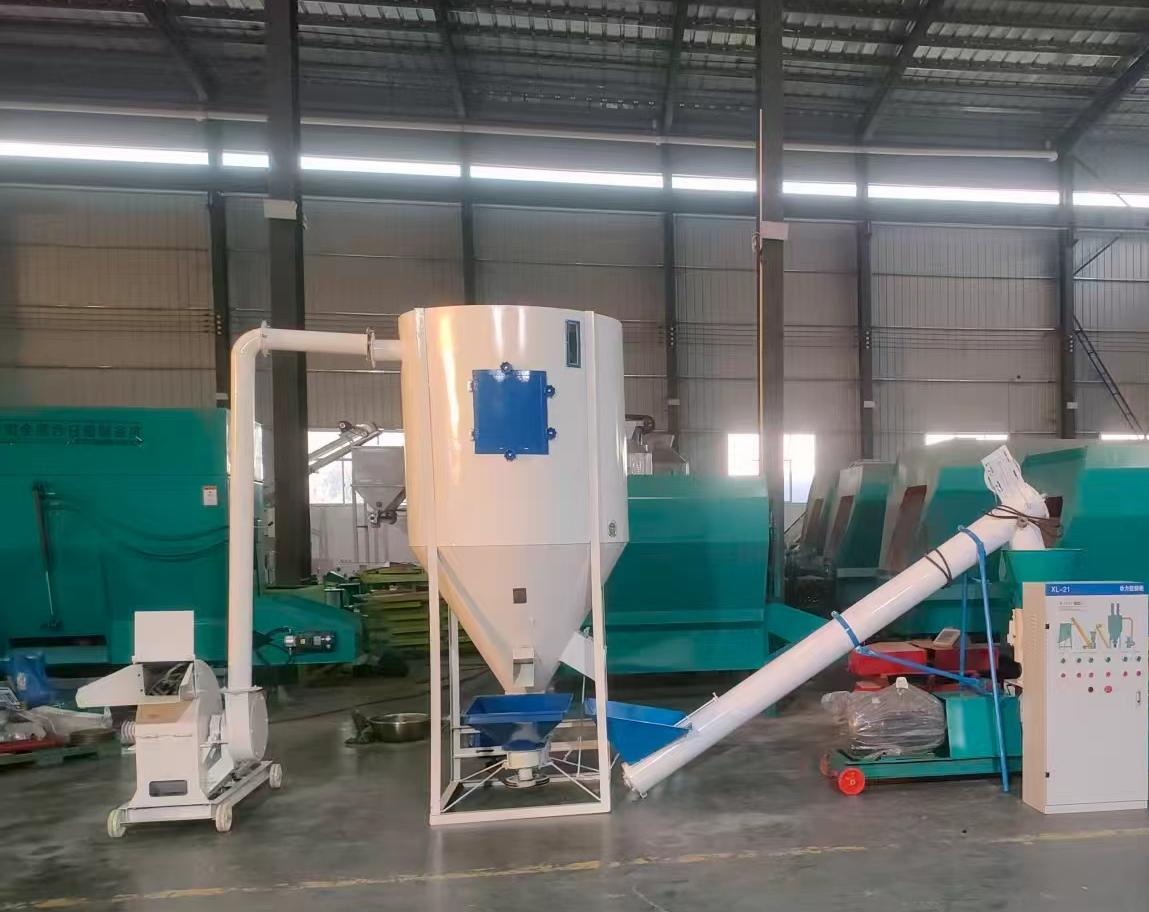

The semi-automatic feed pellet line consists of 4 core devices: feed grinder, feed mixer, screw conveyor and feed pellet mill, with higher automation than simple line.

Hammer Mill Grinder

Crush corn, soybean, sorghum and other granular raw materials into fine powder for uniform mixing.

Vertical Mixer Machine

Mix crushed powder with additives, vitamins and other ingredients evenly, no segregation.

Screw Conveyor

Automatically transport mixed powder from mixer to pellet mill, closed structure prevents dust leakage.

Pellet Mill Machine

Core equipment, presses mixed powder into dense, uniform, durable animal feed pellets.

SIDIO MACHINERY

Three Capacity Options for Semi-Automatic Line

Semi-automatic line with hammer mill, suitable for customers who need to process whole grains directly.

BASIC MODEL

1000 KG/H

For small family farms

Core Configuration:

✓ 9FQ-400 Hammer Mill (7.5kW)
✓ 500kg Vertical Mixer (5.5kW)
✓ 165 Screw Conveyor (3kW)
✓ 9KL-300 Pellet Mill (22kW)

Total Power: ~38kW

Feed Mill Equipment Configuration

Different process designs must correspond to different equipment configurations. Here we list the common equipment configurations of small feed mills.

Configuration Item	1000kg/h	2000kg/h	3000kg/h
Hammer Mill Model	9FQ-400	9FQ-420	9FQ-500
Mill Power	7.5kW	11kW	15kW
Vertical Mixer	500kg	1000kg	1000kg
Mixer Power	5.5kW	7.5kW	7.5kW
Screw Conveyor	165 Type	219 Type	219 Type
Conveyor Power	3kW	3kW	3kW
Pellet Mill Model	9KL-300	9KL-400	9KL-500
Pellet Mill Power	22kW	37kW	55kW
Total Power	38kW	58.5kW	80.5kW

SIDIO MACHINERY

Frequently Asked Questions

What is the capacity range of small scale feed mill plant?

Our small scale feed mill plants range from 500kg/h to 5t/h, suitable for small farms, medium-sized feed workshops and small feed factories. The exact capacity depends on your raw material type, pellet size and final product requirements.

How long does it take to install and commission a feed mill plant?

For a 1-2t/h small feed mill, installation usually takes 7-15 days. Our engineer will provide on-site guidance and training for your workers. Larger plants may require 20-30 days.

What raw materials can be processed in the feed mill?

Common raw materials include corn, soybean meal, wheat bran, grass, straw, alfalfa, rice husk, and various grain by-products. The crusher and grinder can handle both granular and fibrous materials.

Can I customize the feed mill design based on my workshop size?

Yes, we provide fully customized design. We will consider your workshop dimensions, budget, target feed type, and automation level to design the most suitable layout for you.

What is the power requirement for a 1t/h feed mill?

A typical 1t/h small feed mill uses around 25-35KW total power, including crusher, mixer, pellet mill, cooler, conveyor and control system. The exact power depends on your equipment configuration.

Do you provide after-sales support and spare parts?

Yes, we provide 12 months warranty, lifetime technical support, and readily available spare parts supply. We also provide operation training and remote troubleshooting guidance.

Can the plant produce both pellets and mash feed?

Yes. Our standard feed mill can produce both pellet feed and mash (powder) feed. You can switch between production modes according to your market needs.

What is the delivery time for a small feed mill plant?

Standard small feed mill equipment is usually delivered within 15-30 days after deposit. Customized designs may take 30-45 days depending on specific requirements.

What pellet sizes can this feed mill produce?

Our feed mill can produce pellets from 2.5mm to 8mm by changing the die. For poultry feed, 2-4mm is common; for cattle and sheep, 4-8mm is recommended; for fish and shrimp, 1-3mm is typical.

Do I need a special workshop to install the feed mill?

For simple design, you just need a flat floor of around 30-50 m². For semi-automatic and full automatic designs, we will provide workshop layout drawings based on your available space.

What is the difference between flat die and ring die pellet mill?

Our small feed mills use flat die pellet mills, which are more suitable for small capacity, easier to operate and maintain, and have lower investment cost. Ring die mills are better for large capacity industrial production lines.

Can you provide installation guidance overseas?

Yes, we can send our engineer to your country for installation guidance and worker training. The cost depends on the destination country and project scale. We also provide video remote guidance.

What is the minimum order quantity for a feed mill plant?

We support single machine purchase as well as complete production line. You can start with just a pellet mill and later add other equipment step by step according to your needs.

How much investment do I need for a small feed mill plant?

简易的农场饲料加工厂起价约为 8,000 美元。半自动生产线造价约为 20,000 至 35,000 美元。全自动商业化工厂的造价则根据产能和配置的不同，从 40,000 美元到 80,000 美元不等。

你们接受哪些付款方式？

我们接受电汇（30%定金，70%发货前付清）、即期信用证以及阿里巴巴贸易保障订单。价格包含设备、标准配件和出口包装。

免费咨询

立即获取您的专属饲料厂解决方案！

请告诉我们您的需求，我们的工程师将在 24 小时内为您提供详细的设计方案、设备清单和报价。

根据您的需求提供免费定制设计
详细设备清单及报价
专业现场安装指导
12 个月保修 + 终身技术支持

索取免费报价

选择容量0.5-1吨/小时1-2吨/小时2-3吨/小时3-5吨/小时高于 5 吨/小时

全球值得信赖的饲料厂解决方案供应商！
